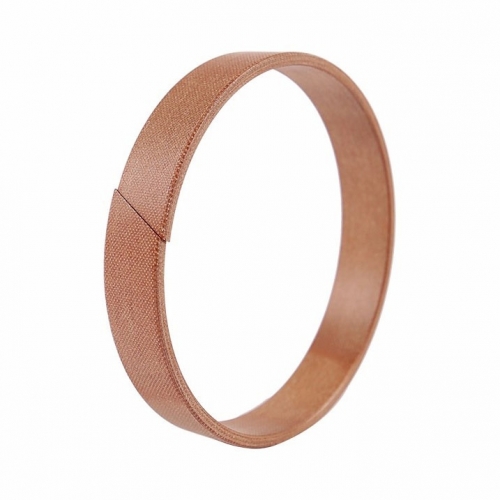

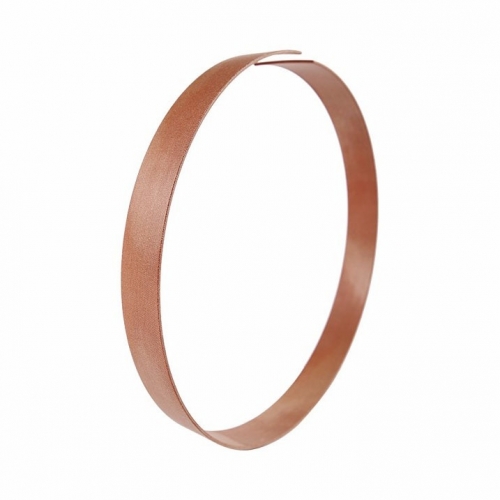

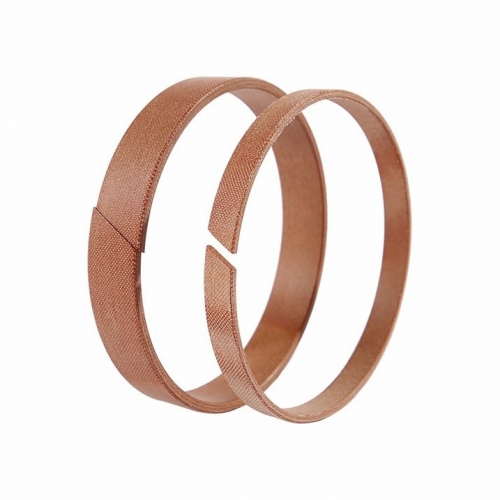

Guide Ring

PFC-6 High-Strength Fabric-Reinforced Phenolic Resin

Application

01 High Pressure Oil Cylinder Guide Rings

02 Engineering Machinery Guide Rings, Bushings, Shaft Sleeves

03 Mining and Coal Machinery EquipmentSupport Rings

04 Hydraulic Machinery, Forging Machinery Tool Guide Bushings

Design Introduction

PFC-6 high-strength composite material is based upon new type of phenolic resin, reinforced with specialty synthetic fiber and processed under certain temperature and pressure.

Advantages

PFC-6 has good mechanical strength and flexibility, superior wear resistance and low friction, thus allows it can adapt all types of service conditions.

Specification

Part Number

Color

Density

g/cm2

Tensile Strength

MPa

Ultimate Compressive strength

MPa

Impact Strength

j/m

Rockwell Hardness

HRM

Coefficlent of Friction

Temperature

Dry

Oil

PFC-6

Light Yellow to Brown

1.2-1.440320215800.20-0.400.09-0.12-40~+130
