PFC Phenolic Cloth & Polyester Cloth

PFC-1 High-Strength Cloth-Reinforced Phenolic Resin

Application

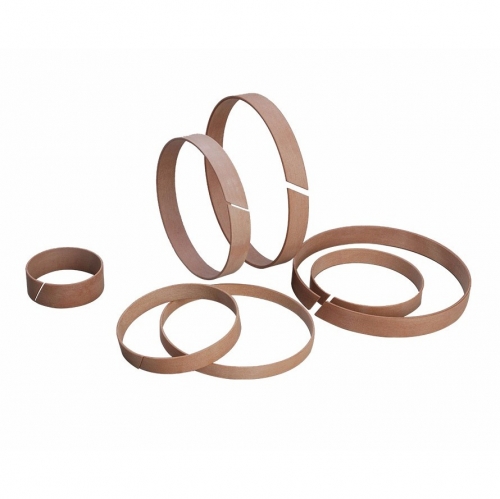

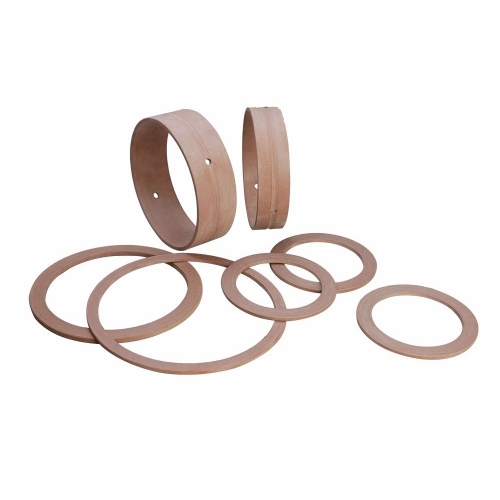

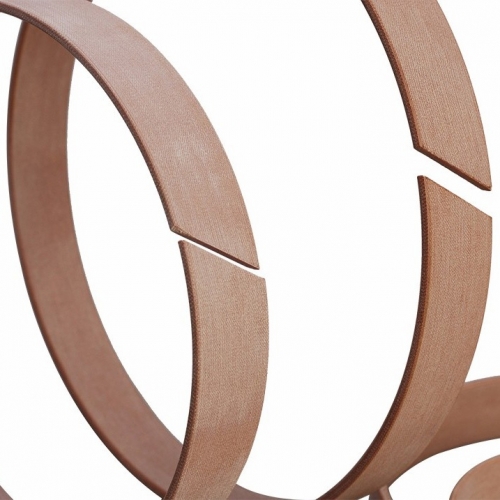

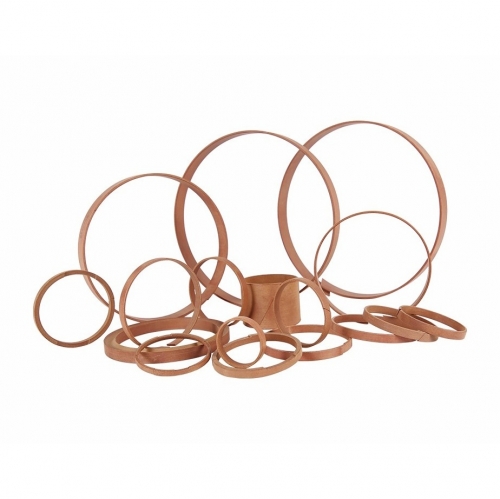

Guide rings and support rings of hydraulic cylinders

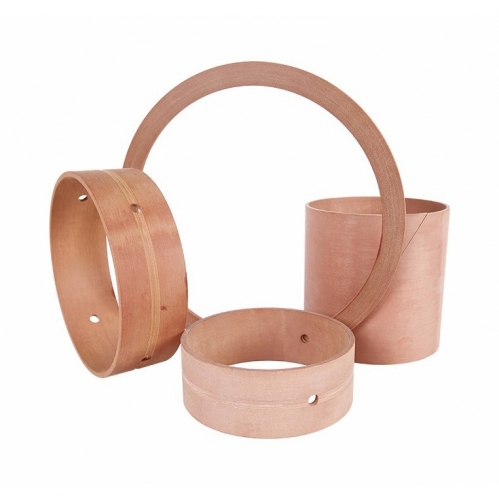

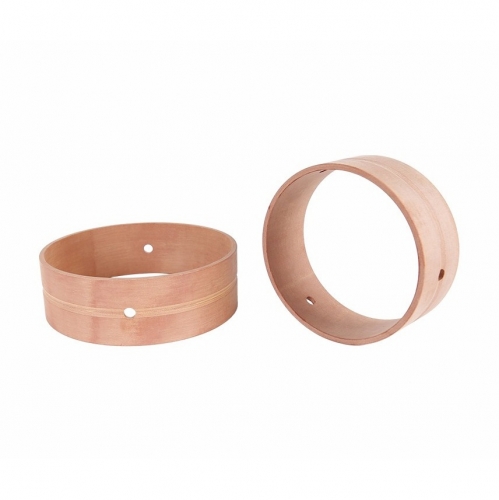

Bushings for the pivot axles for vehicles and engineering machineries

Guiding sleeves for the vertical pillar of hydraulic machineries and forging press


Design Introduction

PFC-1 is high-strength laminated material based upon the thermosetting phenolic resin and reinforced with high-quality cotton fiber and finally finished with heat solidifying process under certain pressure and temperature. This material is featured in its high load sustainability, excellent temperature resistance, abrasion resistance and excellent dimensional stability.

Advantages

 It is applied to the production of guide rings of hydraulic cylinders, support rings, engineering machineries, bushings for the pivot axles for vehicles, thrust plates, guiding sleeves for the pillars of hydraulic machines, etc.

Specification

Part Number

Color

Density

g/cm2

Tensile Strength

MPa

Ultimate Compressive strength

MPa

Impact Strength

j/m

Rockwell Hardness

HRM

Coefficlent of Friction

Temperature

Dry

Oil

PFC-1

Light Yellow to Brown

1.2-1.44525626950.23-0.460.12-0.14-40~+130
